AH-2342-CA* Cooler PLATE-FIN HEAT EXCHANGERS/COOLERS

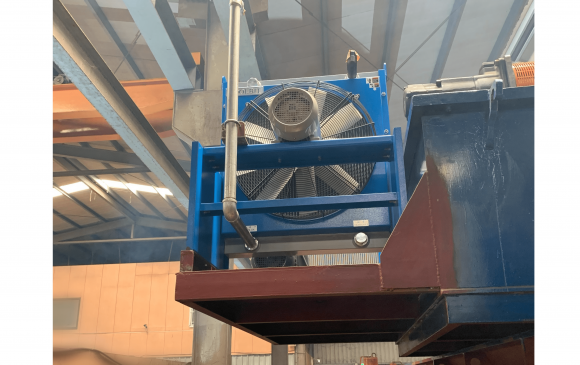

AH2342-CA use case
AH2342-CA use case
Large oil pressure cooler
Large hydraulic press air cooling
300hp stone crusher
300hp stone crusher
AH3-2583
Large oil pressure cooler
Oil cooling AH2583
AH2890 cooler
Best way to use :
  • Hydraulic Presses Kidney Loop
  • Off-line Recirculation cooling

Applicable Industries

  • Hydraulic Presses Kidney Loop
  • Off-line Recirculation cooling
  • Gearbox Cooling
  • Lube Oil Cooling
  • Hydraulic Power Units
  • Case Drain Cooling
  • Injection Molding
  • CNC Machining
  • Compaction, Shredding, and Baling Equipment

Example photo

300hp stone crusher

300hp stone crusher

Large hydraulic press air cooling

Large hydraulic press air cooling

AH2342-CA use case

AH2342-CA use case

AH2342-CA use case

AH2342-CA use case

Large oil pressure cooler

Large oil pressure cooler

300hp stone crusher

300hp stone crusher

Oil cooling AH2583

Oil cooling AH2583

Large oil pressure cooler

Large oil pressure cooler

AH3-2583

AH3-2583

AH2890 cooler

AH2890 cooler

SPEC

Specification / Model AH-2342-CA* Cooler
Thread 1 1/2" RC"/PT"
Fan diameter 560 m/m
Cooling capacity 37000 Kcal/h
Motor 50~75 Hp
Size 605*935*543 m/m
Weight 80 kg
Frequency / Voltage / Current 50Hz , 3Φ 220-240V / 380-415V , 6.39-5.86A / 3.7-3.39A
Frequency / Voltage / Current 60Hz , 3Φ 220V / 380-440V , 6.11A / 3.54-3.06A
Approval CE
